Home » Products » Automatic Multi Head Screw Capping Machine

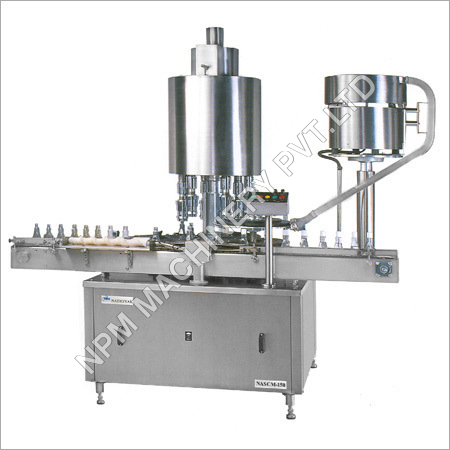

Automatic Multi Head Screw Capping Machine

Automatic Multi Head Screw Capping Machine
Automatic Multi Head Screw Capping Machine
Product Code : NASCM-150
Product Description
Automatic Multihead Screw Capping Machine:

Description:
Automatic screw Capping Machine is versatile, self-supported on stainless steel leg with height adjustable adjustment system. The machine is precision built on sturdy welded steel frame completely enclose in stainless steel sheet and doors are providing to facilitate the servicing of machine.

Operation:
The feed container moving on conveyor belt are feed into an in-feed star wheel bringing the container below the sealing head  in the subsequent indexing part, mean while the rotating head pickup a cap from cap star wheel which is receiving from delivery chute of cap filling bowl, where the body and the neck of the container are positioned below the rotating head, where the sealing head is performing perfect operation of sealing, rotating head is design to seal container according to pre-set torque.

Technical Specification:


Model
NASCM -100
NASCM - 150 NASCM - 200
Output / Hour
3600 to 6000 Bottles
3600 to 9000 Bottles 4000 ro 12,000 Bottles
Direction of Movement
Left to Right
No. of Sealing head
4 Nos.
6 Nos. 8 Nos.
Electrical
Specification
Main Motor 1.5 HP / 415 Volts / 50 Hz.
2 HP / 415 Volts / 50 Hz.
Cap feeding Bowl 300 watt.
Height of Conveyor
860 mm to 910 mm
Machine Dimensions
2135 mm (L) x 1120 mm (W) x 2250 (H) Approx
2150 mm (L) x 1120 mm (W) x 2250 (H) Approx 2135 mm (L) x 1200 mm (W) x 2225 (H) Approx
Case Dimensions
2650 mm (L) x 1250 mm (W) x 2250 mm (H) Approx
2650 mm (L) x 1250 mm (W) x 2250 (H) Approx 2650 mm (L) x 1320 mm (W) x 2250 (H) Approx
Net Weight
900 Kgs. Approx
900 Kgs. Approx 1050 Kgs. Approx
Gross Weight
1250 Kgs. Approx
1250 Kgs. Approx 1400 Kgs. Approx
Change parts required (A) Container: Star Wheel, Back Guide, Feed Worm.
(B) Cap Die, Delivery chute, bowl & S.S.Star wheel.

Input Specification:

Screw Cap Specification
Diameter
22 mm to 56 mm
Height
15 to 18.3 mm


Container Size
Round Shape
Ø22 mm to Ø100 mm
Respectively Height 58 mm to 240 mm (Height option for other bottle height available)

Flat / Square
15 mm to 100 mm (Lenght)
Respectively10 mm to 50 mm (Width)
Respectively Height 40 mm X 240 mm (Height option for other bottle height available)

Salient Features:
  • No container no cap arrangement.
  • Single motor synchronizes conveyor, star wheel & platform turrent.
  • Adjustable height of conveyor belt.
  • All contact parts are made out of stainless steel.
  • Pick & Place arrangement.
  • Torque adjustable.
  • Low noise level, low power consumptioins.
Optional Feature:
  • No cap no container arrangement.
  • Motorized Height Adjustments.
  • Acrylic cabinet.
  • Safety Guard for Operation and Protection.
  • Specially designed hopper is to increase storage capacity of bowl.
Utility Requirement:

Electrical supply 3 Phase + Neutral + Earthing
Electrical load
1.5 KW
Air Pressure
Minimum: 6 Bar, 0.5 CFM.
