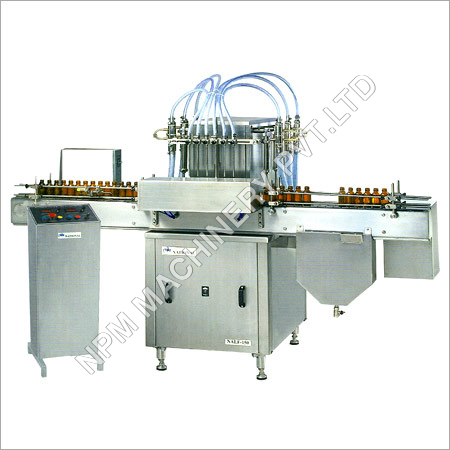

Automatic Volumetric Liquid Bottle Filling Machine

Automatic Volumetric Liquid Bottle Filling Machine
Automatic Volumetric Liquid Bottle Filling Machine
Product Code : NALF-150
Product Description

Automatic Volumetric Liquid Bottle Filling Machine:

Description:
Automatic Volumetric Liquid Bottle Filling Machine work on volumetric principle with diving nozzles. The unit is made compact, versatile and enclosed in stainless steel elegantly matt finish body, of S.S Slat Conveyor, Reciprocating Nozzle with self-centering devices & SS Syringe. No container No filling system arrangement is standard feature of the machine.

The main drive of the machine and conveyor drive consist of A/C Motor with syncronized  variable A/C Frequency drive.

Operation:
Containers moving on S.S.Slat conveyor, feed below the filling nozzles through a settable twin pneumatically operated stoper system. The twin pneumatically operated stopper system and reciprocating nozzles can precisely match for centering of container below nozzles, to avoid spilage of liquid on container.

To minimize foaming adjustable nozzle will reciprocate according to filling dose, nozzle will go upwards slowly from bottom level of bottle towards neck during filling.

The dosing block with a hexagonal bolt fitted below syrings. This means fill size can be easily set.

Techincal Specification:

Model
NALF - 100
NALF - 150
NALF - 200
Output/Hour
2400 to 6000
3600 to 9000
5000 to 12,000
Direction of Movement
Left to Right
Number of head/syringe
4 Nos.
6 Nos.
8 Nos.
Fill Size
5 ml to 1000 ml

Electrical
Specification

Main Machine 1 HP / 415 Volts / 50 Hz.
(1.5 HP if maximum volume is 1000 ml in single doze)
1.5 Hp / 415 Volts / 50 Hz.
(2 HP if maximum volume is 1000 ml in single doze)
Main Machine 0.5 HP / 415 Volts / 50 Hz.
Height of Conveyor
860 mm to 910 mm adjustable.
Machine Dimensions
2135 mm (L) x 1150 mm (W) x 1610 mm (H) 2135 mm (L) x 1350 mm (W) x 1610 mm (H)
Case Dimensions
2350 mm (L) x 1350 mm (W) x 1650 mm (H) 2350 mm (L) x 1550 mm (W) x 1650 mm (H)
Net Weight
600 kgs.
700 kgs.
850 kgs.
Gross Dimensions
850 kgs.
950 kgs.
1100 kgs.
Change parts required
(A) Syringes. (B) Nozzle (C) Inlet & outlet hose pipe

Input Specification:

Container Neck Diameter
Minimum 22 mm


Container Size
Round Shape
(A) Ø28 mm to Ø100 mm
(B) Height 58 mm to 240 mm (Height option for other bottle height available  )
Flat / Square
(A) 15 mm to 100 mm (Length)
(B) 10 mm to 50 mm (Width)
(C) 58 mm x 240 mm (Height option for other bottle height available)

Salient Features:
  • ± 1 % Filling accuracy on single dose.
  • No bottle No filling system.
  • Rigid vibration free construction for trouble free performance.
  • S.S. Elegantly matt finished body.
  • Elegant and easy control panel for total control on operation.
  • Minimum change overtime, from one size to another container or fill size.
  • Self lubricating UHMW- PE guide profile for SS slat chain provides low friction wear surface, smooth and noiseless conveying.
  • Error code display on AC frequency drive on control panel.
  • Drain tray around machine plateform.
  • Drip tray under the conveyor.
  • Pneumatic bottle stopping arrangement.
  • Synchronized two nos. A/C drive for main motor & conveyor belt.
  • Safety guard for conveyor gear box, motor and pneumatic cylinders.
  • MCB for over load protection and prevention against short circuit.
  • Inbuilt protection against over current, Voltage fluctuation., Short circuit in AC Frequency drive.
Optional Feature:
  • Automatic chain washing system for conveyor belt.
  • In-built pre-inspection.
  • Acrylic cabinet.
  • Acrylic cover on conveyor.
  • Nitrogen Flushing.
  • Float tank (Holding tank) with or withour stirrer.
Utility Requirement:

Electrical Supply 3 phase + Netural + Earthing
Electrical load
2 KW
Air pressure
Minimum: 6 bar pressure 0.5 CFM
