Packing Conveyor Belt

Packing Conveyor Belt
Packing Conveyor Belt
Product Code : NPCB
Product Description

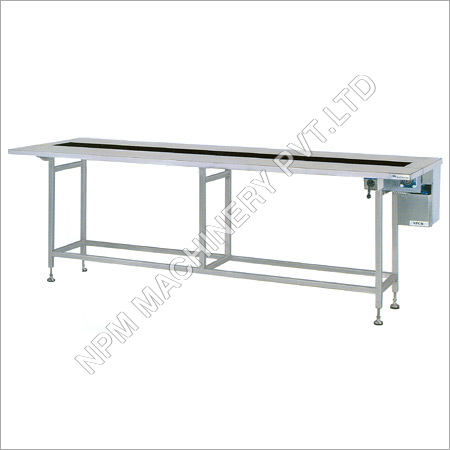

Packing Conveyor Belt:

The packing conveyor belt is having stainless steel table top with moving endless snadwish belt in the center. Tabletop is fixed to the same structure made out of SS square pipe and supported on adjustable bolts. Tabletop is of 12 inches working space on both side of the conveyor belt for final visual inspection dn packing.

The conveyor belt brings the container or products from the labelling/blister/strip machine, operator in turn pickup these bottles/products and visually inspect the bottles/products and doing necessary action like primary packing, secondary packing, picking and placing at proper place.

Technical Specifications:

Direction of Movement
Left to Right
7.5 Mtr./Min upto 12 Feet Long
12 Mtr./Min. from 13 Feet to 24 Feet Long
Power Characteristics
0.25 HP/220 V/50 Hz upto 12 feet long
0.5 HP/220 V/50 Hz from 13 feet to 24 feet long
Height of Conveyor
860mm to 910mm
Belt width
9" or 12" as per requirement
Belt Details
PVC, endless 2 ply sandwich, 2mm thickness
9" width belt
As per requirements (L) x 830mm (W) x 910mm (H)
12" width belt
As per requirements (L) x 900mm (W) x 910mm (H)
9" width belt
As per requirements (L) x 1050mm (W) x 1150mm (H)
12" width belt
As per requirements (L) x 1100mm (W) x 1150mm (H)
Net Weight
Depend on Length
Gross Weight
Depend on Length

Salient Features:
  • Structure is made of S.S. 304, 30mm sq. pipe, 16 SWG with matt finish.
  • A/c frequency variable drive.
  • belt alignment system for long life and straight running of belt.
  • Direct gear drive.
  • Length can be made as per customer requirement.
  • S.S. elegantly matt finishing.
  • Adjustable height of conveyor belt, to align with other machine of the line.
  • Self-alignment bearing for easy maintenance.
  • Rigid vibration free construction for trouble free performance.
  • Castor wheel with lock.
  • Extra and table at end of conveyor.
  • Special type adjustable angle at initial of conveyor for strip or blister packing
  • S.S. chain instead of PVC belt.
Utility Requirement:
  • Electrical supply: Single Phase + Neutral + Earthing
  • Electrical load: 0.5 kw.
