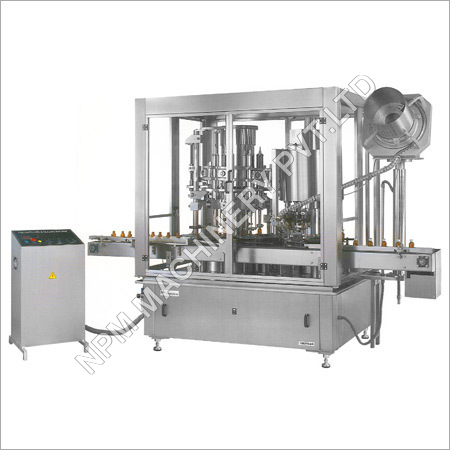

Rotary Piston Filling & Sealing Machine Monoblock

Rotary Piston Filling &  Sealing Machine Monoblock
Rotary Piston Filling & Sealing Machine Monoblock
Product Code : NRPM-6/6
Product Description
Rotary Piston Filling &  Sealing Machine Monoblock:

Description:
Automatic Rotary Piston Filling Cum Seeling Machine is versatile, self-supported on stainless steel leg with height adjustable adjustment system. The machine is precision built on study welded steel frame completely enclose in stainless steel sheet and doors are provided to facilitate the servicing of machine, work on volumetric principle with rotary motion. This unit is made compact, versatile and enclosed in stainless steel elegantly malt finish boby. No container No filling & No Sealing system arrangement is standard features of the machine.

The main drive of the machine, conveyor drive & cap-feeding bowl consist of A/c Motor with synchronized variable A/c Frequency Drive.

Operation:
Containers moving on SS Slat conveyor, feed below the filling nozzles through feed worm & in-let star wheel. Filling station consist of volumetric filling head and a central rotating liquid reservoir tank. This reservoir tank fed continuiusly with the liquid by external source. In-feed liquid controlled automatically by sensing the liquid level in the reservoir tank with the help of floating level switch to actuate pneumatically operated solenoid valve. Fill volume adjustment can be done by a screw, which changes the volume of all the syringes simultaneously. Fine asjustment of individual syringe is possible with the help of mechanism provided on top of the individual syringe.

After filling star wheel bringing the container below the sealing head in the subsequent indexing part, mean while the bottle pickup a cap from the delivery chute of cap feeding bowl, where the body and the neck of the container are positioned below the rotating head, where the sealing head is performing perfect operation of threading & sealing.

Techincal Specification:

Model
NRPM - 6/6
NRPM - 8/8
NRPM - 16/8
Output / Hour
2500 to 7500 Bottles
4000 to 10,000 Bottles
7000 to 14500 Bottles
Number of head/syringe
6
8
16
Number of head/sealing 6
8
8
Direction of movement
Left to Right
File Size
30 ml. to 200 ml.

Electrical
Specification
Main Machine
3 HP / 415 Volts / 50 Hz.
5 HP / 415 Volts / 50 Hz.
Oriental Bowl
0.25 HP / 415 Volts / 50 Hz.
0.5 HP / 415 Volts / 50 Hz.
Conveyor
0.5 HP / 415 Volts / 50 Hz.
0.75 HP / 415 Volts / 50 Hz.
Height of Conveyor
910 mm to 960 Adjustable
Machine Dimensions 3050 mm (L) x 1400 mm (W) x 2200 mm (H) 3660 mm (L) x 1700 mm (W) x 2400 mm (H)
Case Dimensions 3250 mm (L) x 1600 mm (W) x 2200 mm (H) 3850 mm (L) x 1900 mm (W) x 2400 mm (H)
Net Weight
2500 Kgs. 2650 kgs. 4200 Kgs.
Gross Weight
3000 Kgs. 3250 Kgs. 5000 Kgs.
Change parts required
(A) Container: Star Wheel, Back guide, Feed Worm, Nozzle (B) Cap: Die, Delivery chute, bowl.
(c) Syringes (if volume higher/lower then above specification)


Input Specification:

ROPP Cap Specification
Diameter
19 mm to 38 mm


Container Size
Height
15 to 18.3 mm
Round Shape
Ø22 mm to Ø100 mm
Height 58 mm to 240 mm (Height option for other bottle height available)

Flat / Square
15 mm to 100 mm (Lenght)
Respectively 10 mm to 50 mm (Width)
Respectively Height 58 mm X 240 mm (Height option for other bottle height available)

Salient Features:
  • "GMP"  Model based on advanced technology.
  • Single Operator for Two Operations.
  • Less Floor Area - as both the sections driven by one motor.
  • No Contamination as immediate sealing of filled bottles.
  • Accuracy ±1% due to piston dozing principle.
  • Centralized Volume Adjustment System.
  • No Bottle No Fill for individual head, hence no spillages.
  • Placing of Cap Feeder Outside Monoblock-avoid entering of dust in it.
  • Less Caps in chute, automatically stop the machine.
  • Additional Sensors for Minimum and Maximum Level of Cap in chute which automatically start and stop rotary cap feeder to avoid Damage of caps during Rotation and Wastage of Energy.
  • Better finish imported polished, laminated S.S. sheet used.
  • Electronic liquid level controller and pneumatically controlled control valve.
  • Drip trays under the conveyor.
  • Self Lubricating UHMW- PE Guide profile for Low friction wear surface, smooth and noiseless conveying.
  • Universal coupling for quick and easy setting of In-feed worm.
  • Safety Guard for Operation and Protection.
  • Electronic Sensor at out feed for Bottle Jamming.
Optional Feature:
  • Motorized Height Adjustments.
  • Automatic chain washing system for conveyor belt.
  • In-built pre-inspection.
  • Nitrogen Flushing.
  • Cap Elevator to feed caps to the feeding bowl.
Utility Requirement:

Electrical supply 3 Phase + Neutral + Earthing
Electrical load 3 KW
Air Pressure: Minimum
6 bar pressure 0.5 CFM
