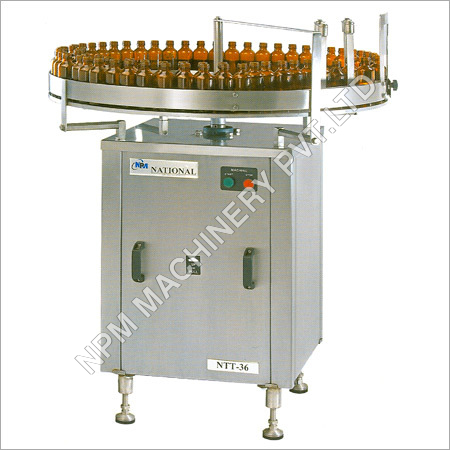

Turn Table Scrambler & Un-Scrambler

Turn Table Scrambler & Un-Scrambler
Turn Table Scrambler & Un-Scrambler
Product Code : NTT-36
Product Description
Turn Table Scrambler & Un-Scrambler:

Description:
Stainless steel scrambler & un scrambler, which is familiar as turn table. This is built on SS square frame, solid guide rail & reduction gear box for jerk less & noiseless performance. Turntable is useful to unsure total synchronization, uniform flow of container and to take a turn at 90 degree to suit different machine and purpose in automatic liquid line.

Operation:

Container inputs in turn table by manually or automatic will rotate on disk of turn table and exit through outlet, during rotation of container will guided by a SS strip, which will guide the container towards outlet path.

Technical Specification:

Model
NTT - 30
NTT - 36
NTT-42
Direction
Clockwise / Anti clock wise as per requirement
RPM of Disk
4/5/6 through step pully
Power Characteristics
0.5 HP / 415 V / 50 Hz
Height of Disk
860 mm to 910 mm
Machine Dimensions 780 x 780 x 1160 925 x 925 x 1160 1076 x 1076 x 1160
Case Dimensions
975 x 975 x  1300 1125 x 1125 x 1300 1300 x 1300 x 1300
Net Weight
150 kgs. 175 kgs. 200 kgs.
Gross Weight
300 kgs. 350 kgs. 400 kgs.

Input Specification:


Container Size

Round Shape
Ø22 mm to Ø100 mm
Respectively height 58 mm to 240 mm
(Height option for other bottle height available)

Salient Features:

  • Construction AISI S.S.304 quaility.
  • Three step pully for different speed.
  • Special self-aligning bearings ensure smooth and trouble free operation.
  • Suitable for different type of container.
  • S.S. elegantly matt finished body.
  • Reduction gears ensure jerk free and noiseless operation.
  • Matt Finished body.

Optional:

  • Castor Wheel with lock
  • A/c Frequency Drive
  • Acrylic Cover
  • Tray for loading or unloading of container

Utility Requirement:

  • Electrical suppy: Three Phase + Neutral + Earthing
  • Electrical load: 0.5 KW
